Technical Specifications
Handling
- DirectSelect Touch Controls
Flexibility
- 2 Flex zones
- 4 induction zones
- Cooking zones: 1 x Ø 400 mmx240 mm, 3.3 KW (max. Power level 3.7 KW) Induction or 2 x Ø 200 mm, 2.2 KW (max. Power level 3.7 KW) Induction; 1 x Ø 400 mmx240 mm, 3.3 KW (max. Power level 3.7 KW) Induction or 2 x Ø 200 mm, 2.2 KW (max. Power level 3.7 KW) Induction
Comfort & Convenience
- PowerBoost function for each cooking zone
- PanBoost
- MoveMode (3 levels)
- PowerTransfer
- 17 - stage power setting for each cooking zone
- 2 stage residual heat indicator for each zone
- Automatic pan recognition sensor Power management function Automatic Safety switch-off Childproof lock WipeProtection
- ReStart function
- QuickStart - Quick and automatic first pot detection
- Keep warm function for all cooking zones
- PerfectFry sensor with 5 temperature settings
- Digital display
- Time with time programming functions Alarm clock count-up timer, per cooktop
Design
- Black ceramic glass with stainless steel flush-fitted trim
Ventilation
- Fully-automatic extraction functionality with air quality sensor
- Fully-automatic fan speed level control or optionally manual control by TwistPad Fire user interface
- High-performance blower, Efficient BLDC-technology
- 9 fan speed levels plus 1 intensive setting
- Automatic 30 minutes run-on function
- Removable and detachable grease filter and liquid collector unit, dishwasher safe - integrated stainless steel grease filters, dishwasher safe - condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe
- Cast-iron air inlet grid, heat resistant, dishwasher safe
- Saturation indicator for grease filter
- Extraction rate according to EN 61591: - min. Normal use 169 m3/h - max. Normal use 551 m3/h - Intensive setting 684 m3/h
- Noise level (sound power emissions) based on dB(A) Minimum/Maximum normal use: 42 /70 dB(A) Intensive: 75 dB(A)
- Suitable for ducted or re-circulated extraction (Accessory is required)
Technical information
- Appliance measurements (H/W/D): 197 mm x 826 mm x 546 mm
- Installation dimensions: (H/W/D) 197 mm x 780 mm x 490 mm
- 80 cm width
- Length wire connection: 110 cm
- 7.4 KW total connected load
- Voltage: 220 - 240 V
Optional accessories
- For ducted extraction extraction kit (accessory Z8100X0) required
- For recirculated extraction cleanAir recirculating kit (accessory Z8200X1) required
Accessories
Downloads

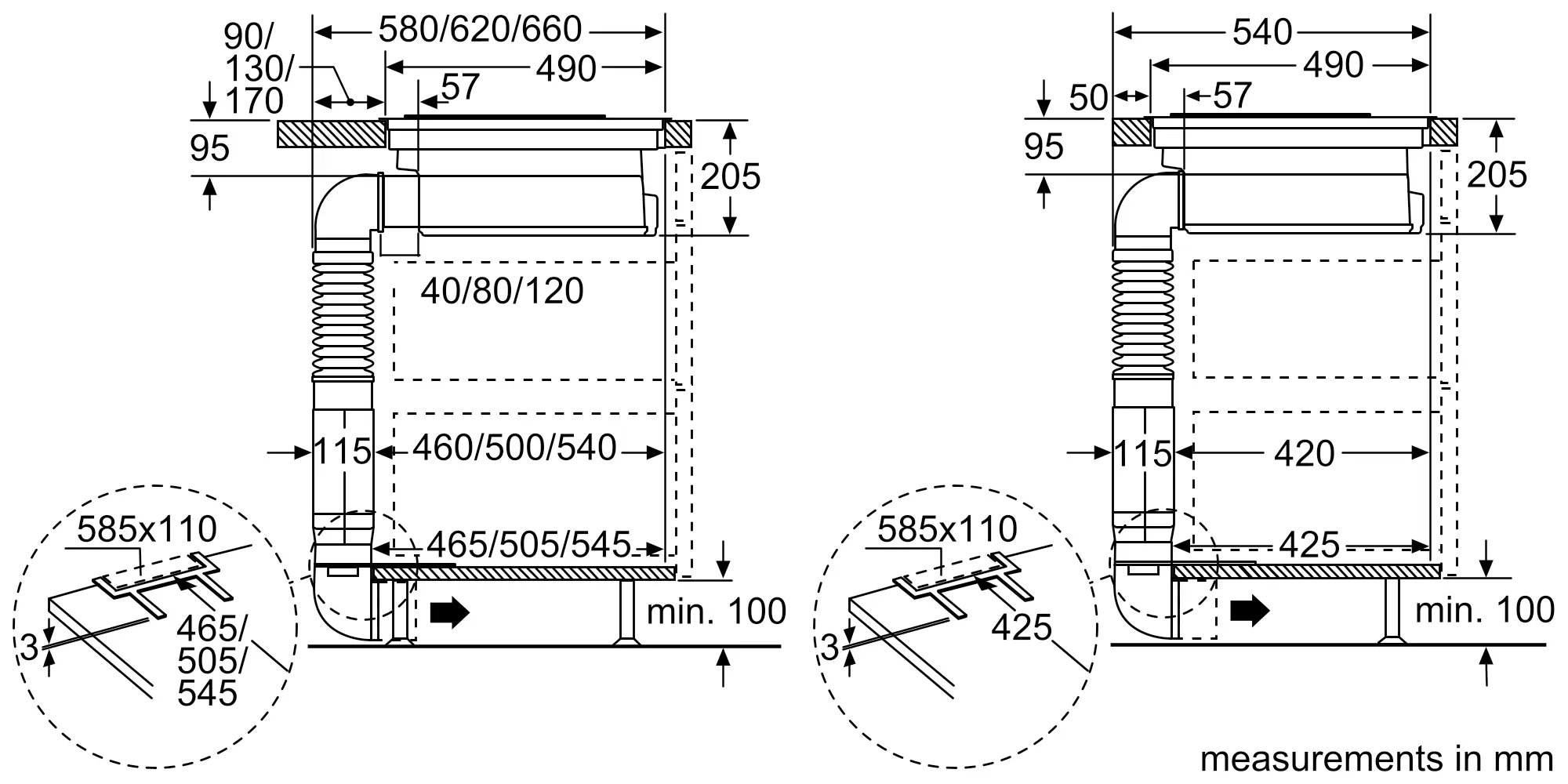

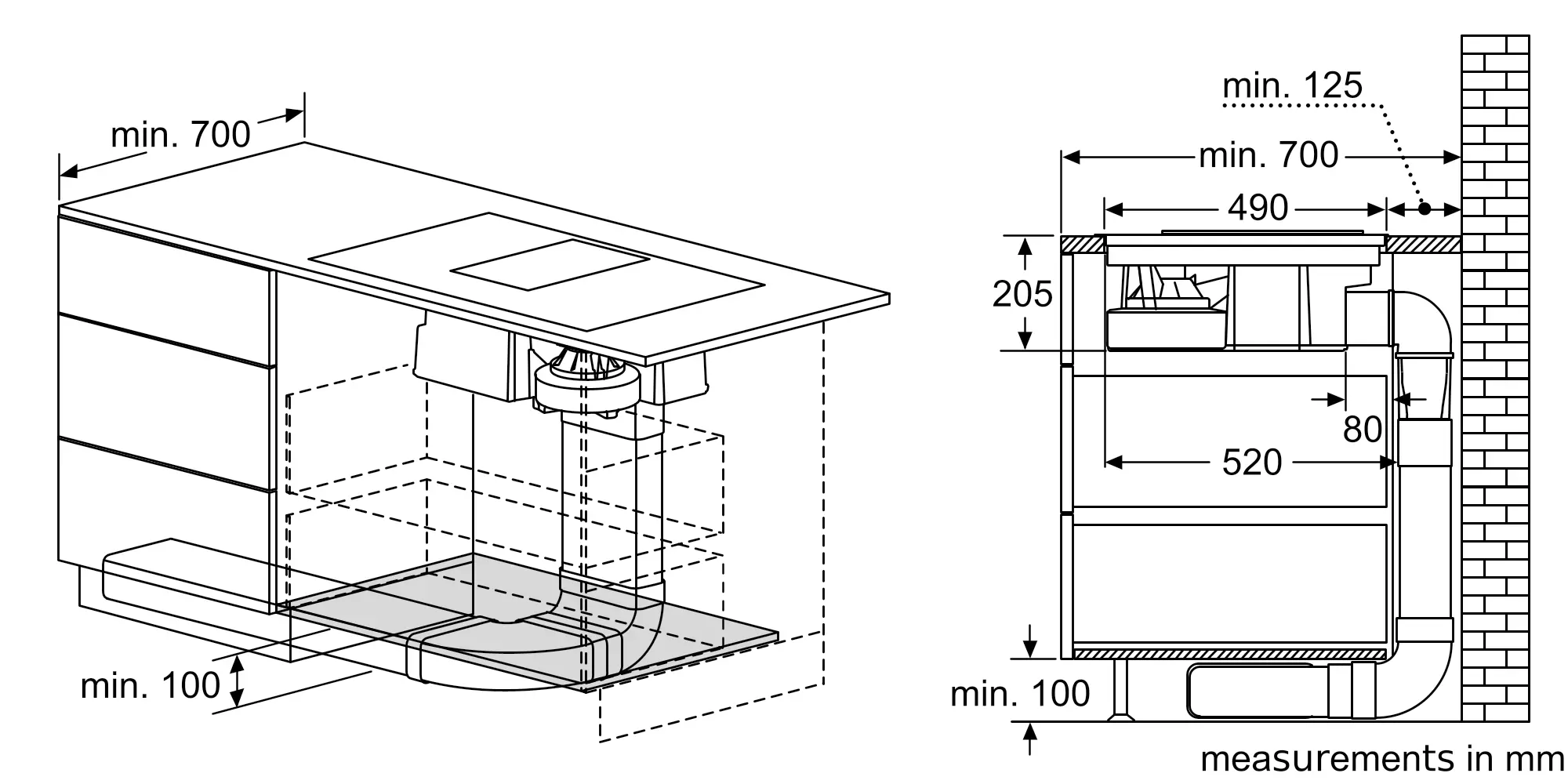

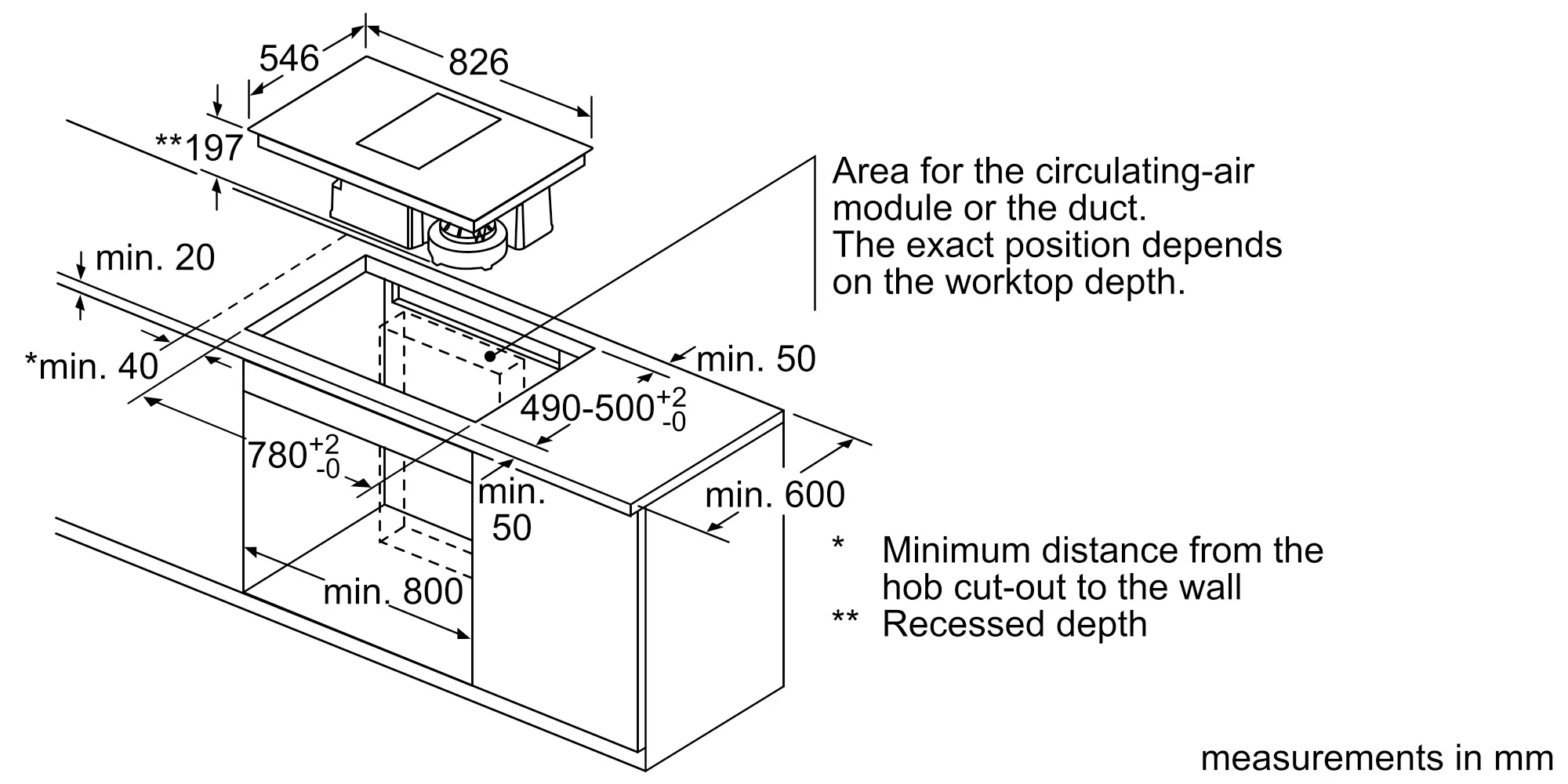

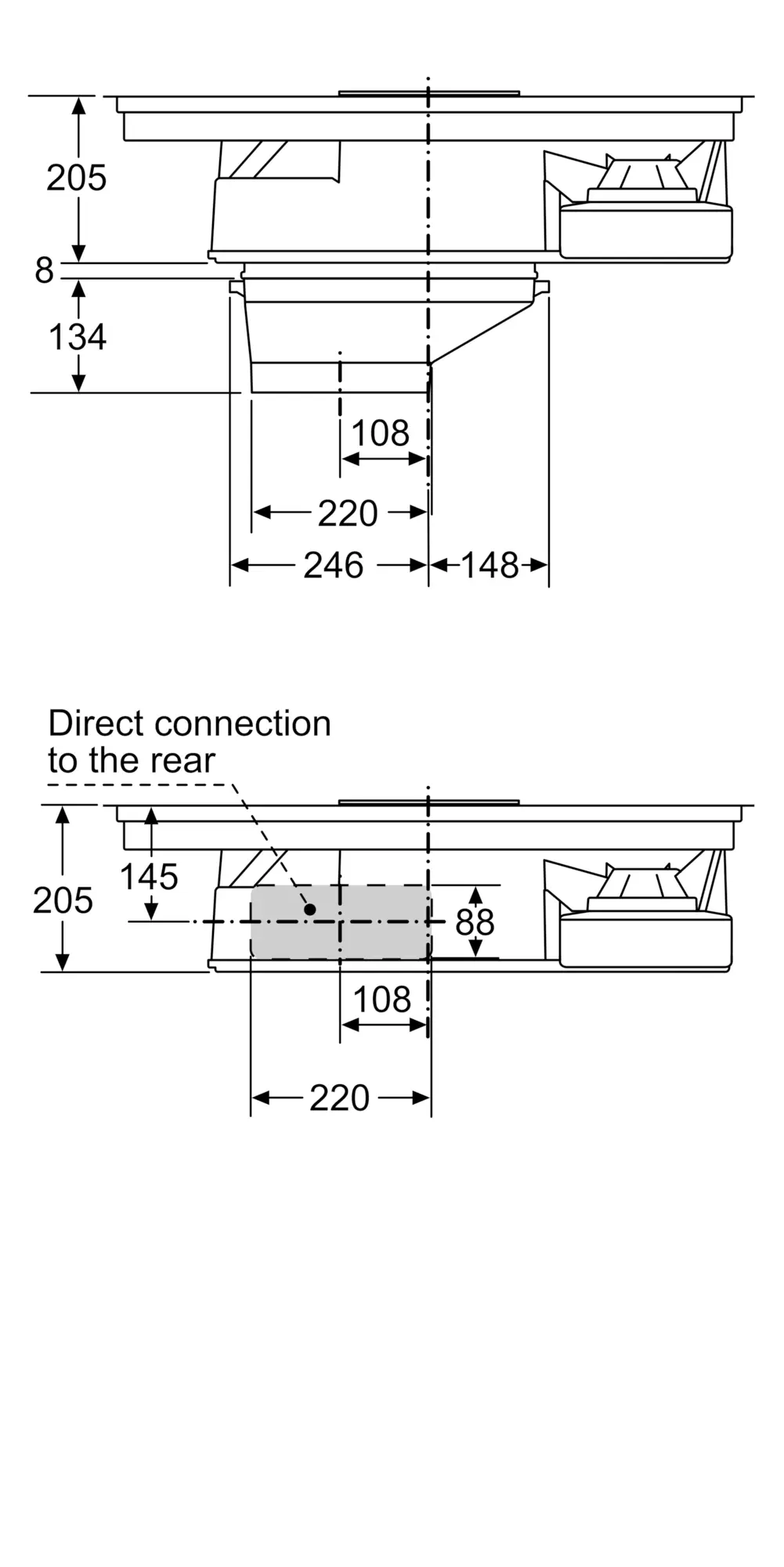

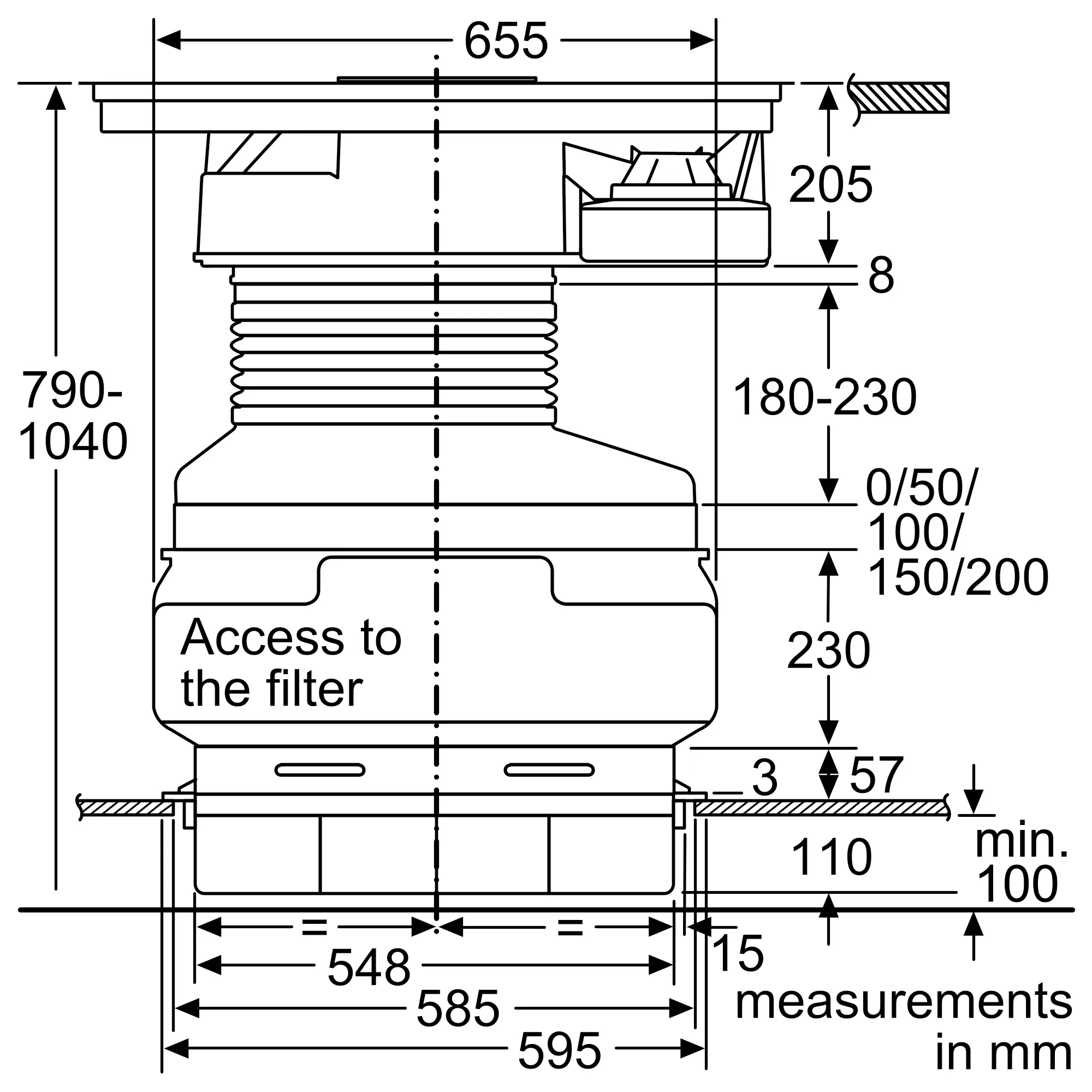

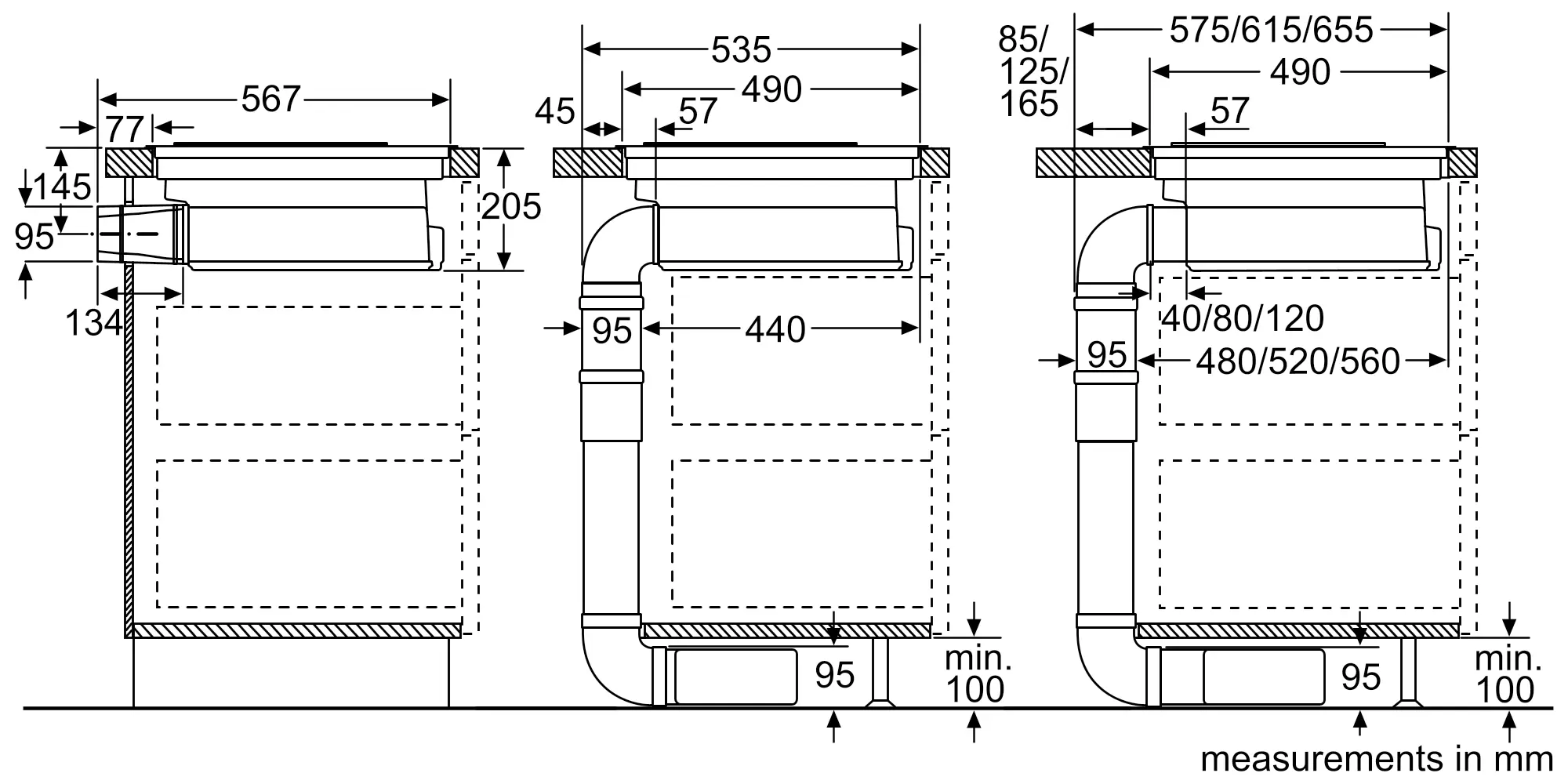

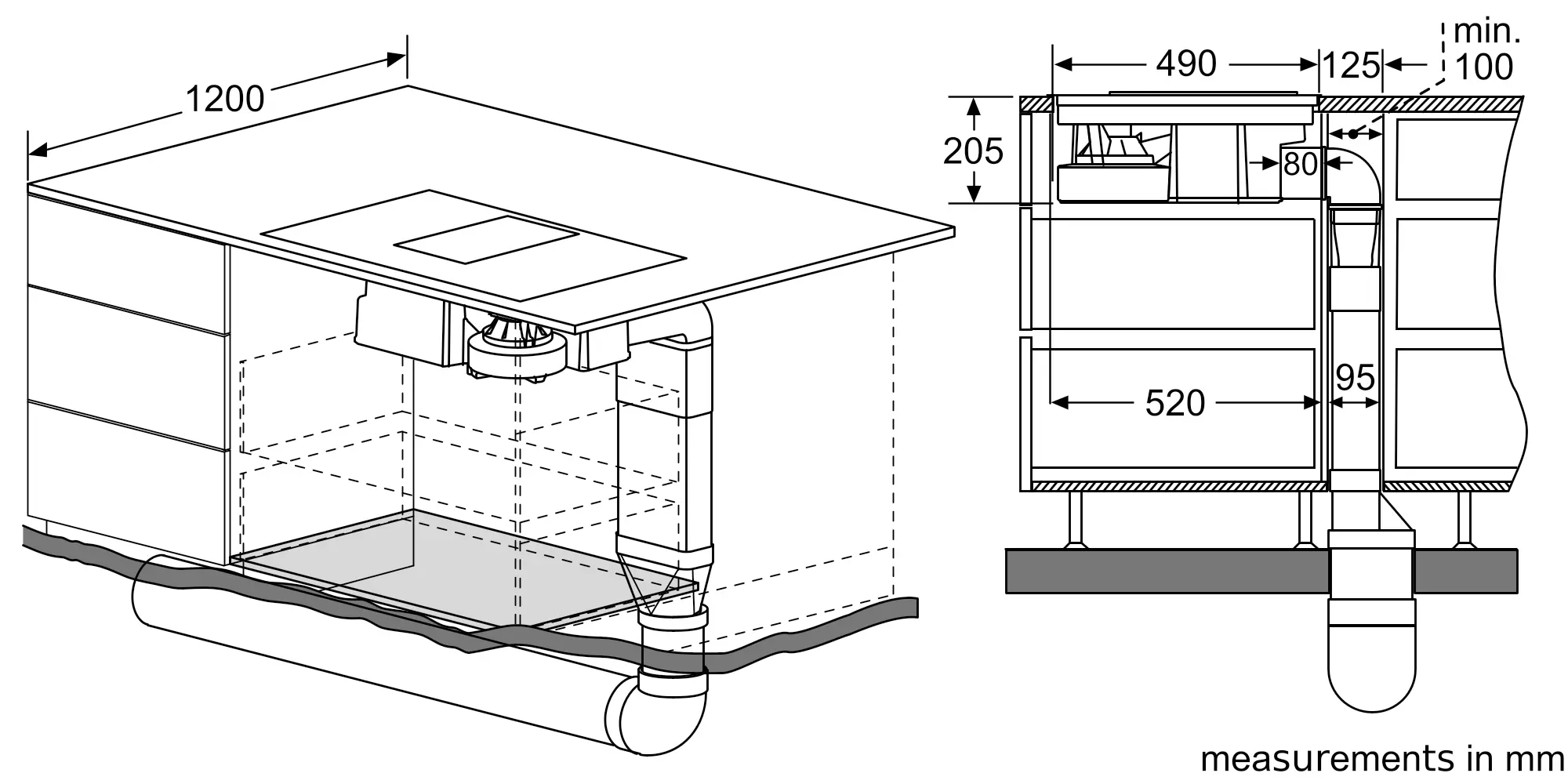

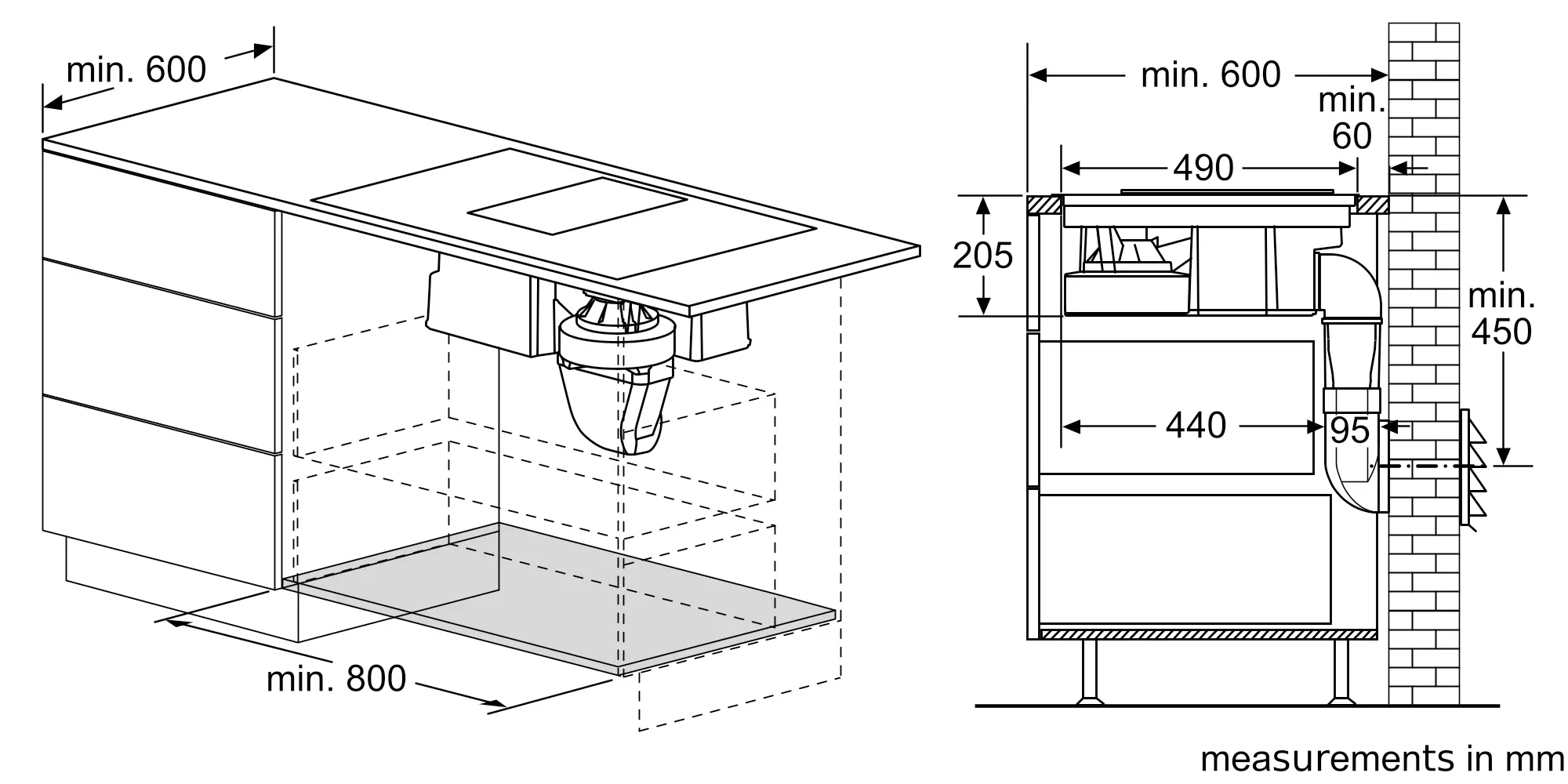

Line Drawing
