Technical Overview
Dimensions (HxWxD)
595x596x548 mm
Display control
TFT touchdisplay, twist pad ready
Cleaning system
EcoClean Direct
Steam technology
Steam Function Plus 120°C - your dishes retain even more of their vitamins and nutrients and are done faster
Sensors
Multipoint meatprobe with time prediction
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Plug type
No plug (electrical connection by licensed electrician)
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Key Features
Commitment To Excellence
Specifications
Main colour of product
Flex Design: Brushed Bronze, Anthracite Grey, Deep Black, Metallic Silver
Door colour
Black
Color / Material panel
Black
Display control
TFT touchdisplay, twist pad ready
Number of heating modes & (Microwave) combination heating modes
24
Cooking method
Defrost, Regeneration, Sous-vide, CircoTherm / HotAir, Air fry, Bread Baking Setting, Full width grill, Hotair gentle, Half width grill, Conventional heat, Top/Bottom heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming
Steam technology
Steam Function Plus 120°C - your dishes retain even more of their vitamins and nutrients and are done faster
Heating modes combined with steam function
CircoTherm / HotAir, Bread Baking Setting, Conventional heat, Hot air grilling, warming
Range of temperature (°C)
30-250 °C
Water intake
Removable water tank
Water tank volume
1.0 l
Cleaning system
EcoClean Direct
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Door opening
Drop down
Door hinge
Not applicable
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Safety device
Child lock
Included accessories
2 x grid, 1 x universal pan, 1 x steam container, punched, size XL, 1 x steam container, punched, size M, 1 x steam container, unpunched, size M, 1 x air fry & grill tray
Dimensions (HxWxD)
595x596x548 mm
Dimensions of the packed product (HxWxD)
675x660x690 mm

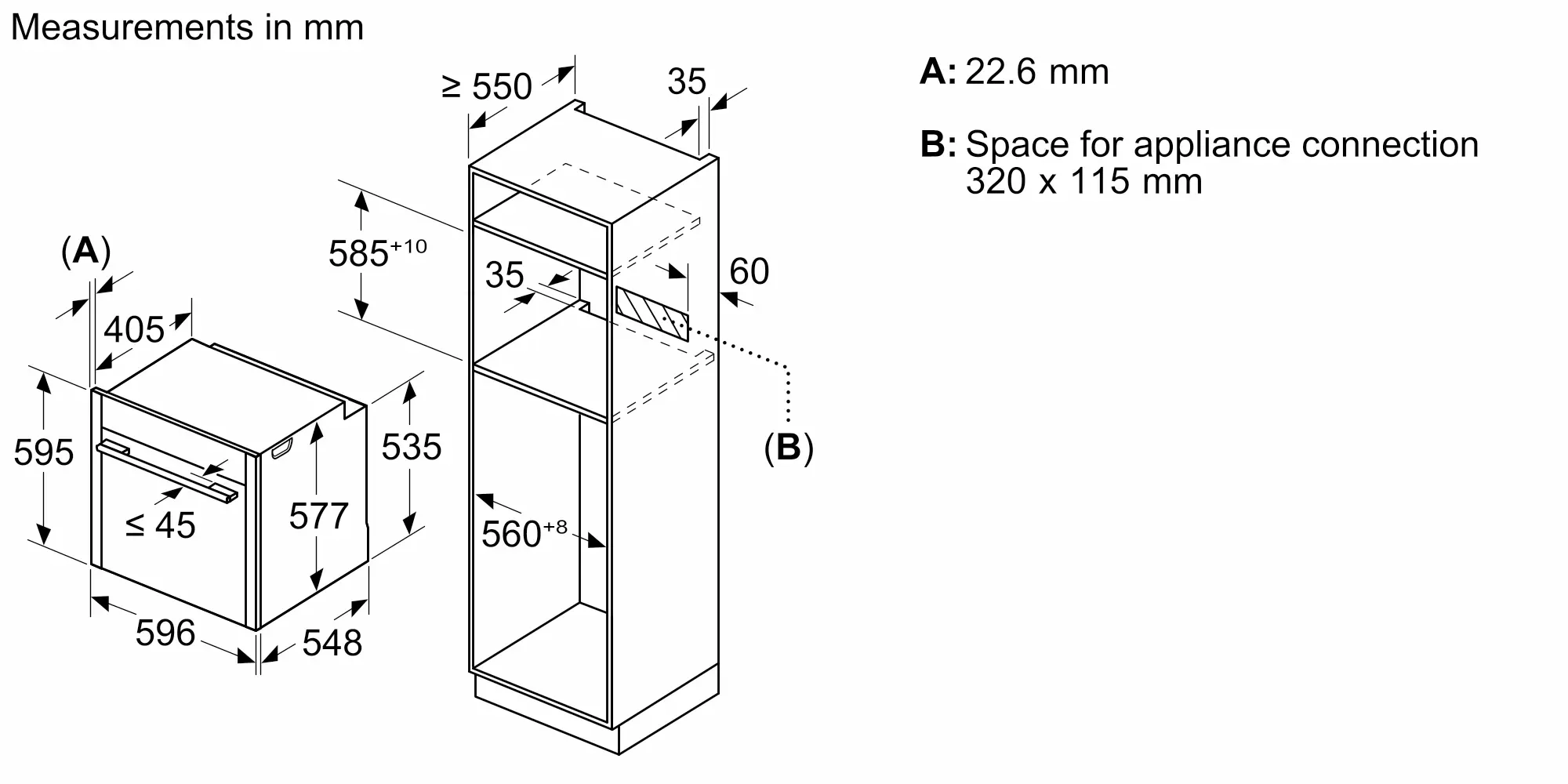

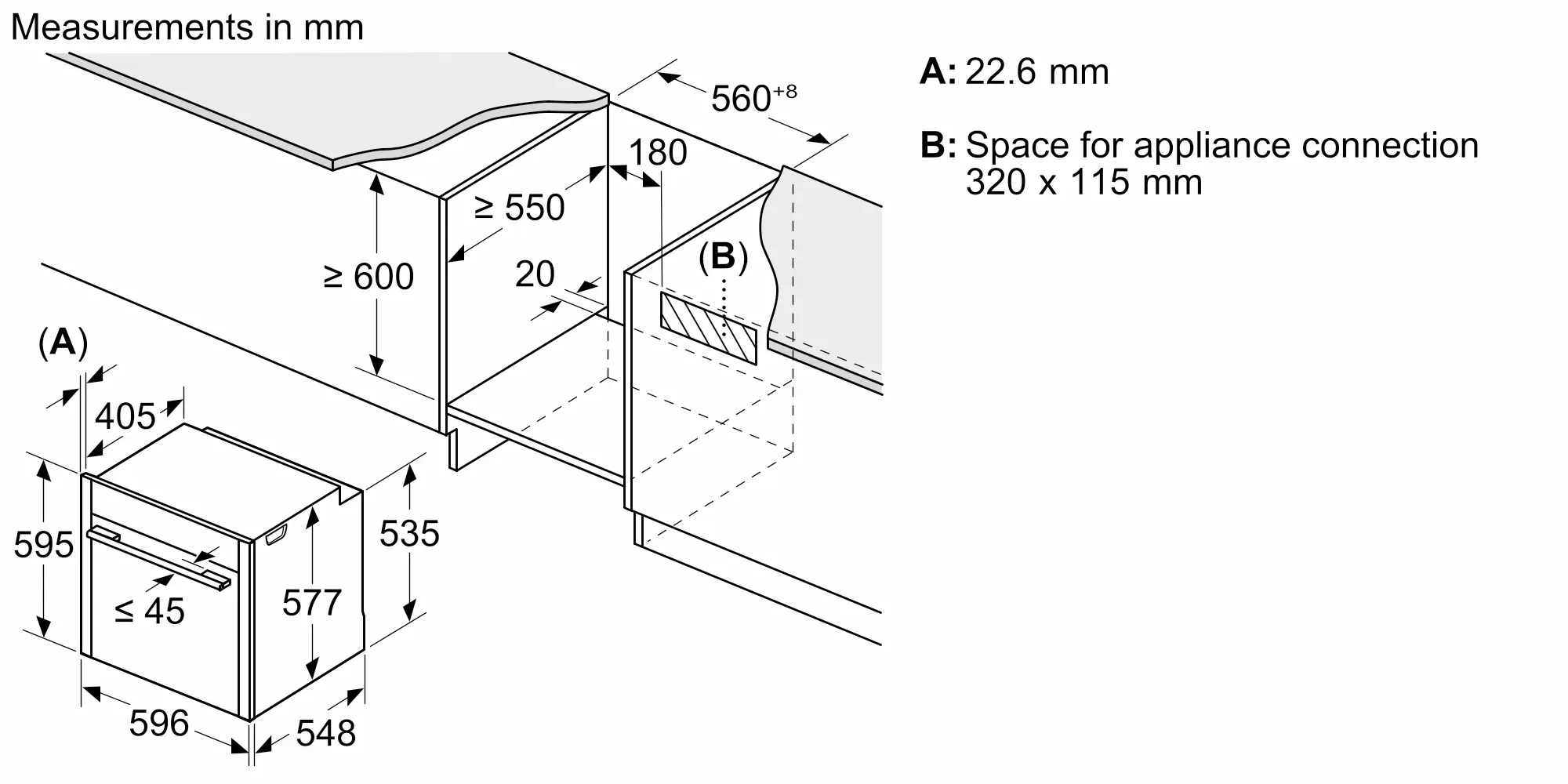

Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Net weight
41.1 kg
Length electrical supply cord
120 cm
1 / 0
Plug type
No plug (electrical connection by licensed electrician)
Length electrical supply cord
120 cm
Voltage
220-240 V
Connection Rating
3600 W
Fuse protection
16 A
User manuals included
[EN]
Hide
Yes
Slide&Hide
Yes
Flex Design
yes (choose between anthracite grey, deep black, brushed bronze, metallic silver as an accessory)
Supporting systems
Dishes
coolStart
No
Fast preheat
Yes
Pizza setting
Yes
Crisp function
No
Air Fry function
Yes
Sensors
Multipoint meatprobe with time prediction
Hotair
4D (even heat distribution on any level )
Cooking-Assistant in Home Connect App
Yes (available with connected Home Connect account)
Voice control via voice assistant
yes (available with a registered and connected Home Connect account & using a third party, e.g. Alexa, is required)
Automatic door opening via voice control
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
