Technical Overview
Dimensions (HxWxD)
595x596x548 mm
Display control
TFT touchdisplay, twist pad ready
Cleaning system
Pyrolytic + Easy Clean
Steam technology
Added steam
Sensors
Multipoint meatprobe with time prediction
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Plug type
No plug (electrical connection by licensed electrician)
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Key Features
Commitment To Excellence
Specifications
Where can the appliance be installed?
Base cabinet, high cupboard installation
Are some hobs controls integrated?
No
Which kind of cooktops can be controlled
Not applicable
Main colour of product
Flex Design: Brushed Bronze, Anthracite Grey, Deep Black, Metallic Silver
Door colour
Black
Color / Material panel
Black
Display control
TFT touchdisplay, twist pad ready
Number of heating modes & (Microwave) combination heating modes
21
Cooking method
Regeneration, CircoTherm / HotAir, Air fry, Bread Baking Setting, Full width grill, Hotair gentle, Half width grill, Conventional heat, Top/Bottom heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming
Heating methods only via Home Connect app
Let rest, pre-heating
Range of temperature (°C)
30-275 °C
Steam technology
Added steam
Cleaning system
Pyrolytic + Easy Clean
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Door hinge
Other
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Energy efficiency rating
A+
Safety device
Door lock, Child lock

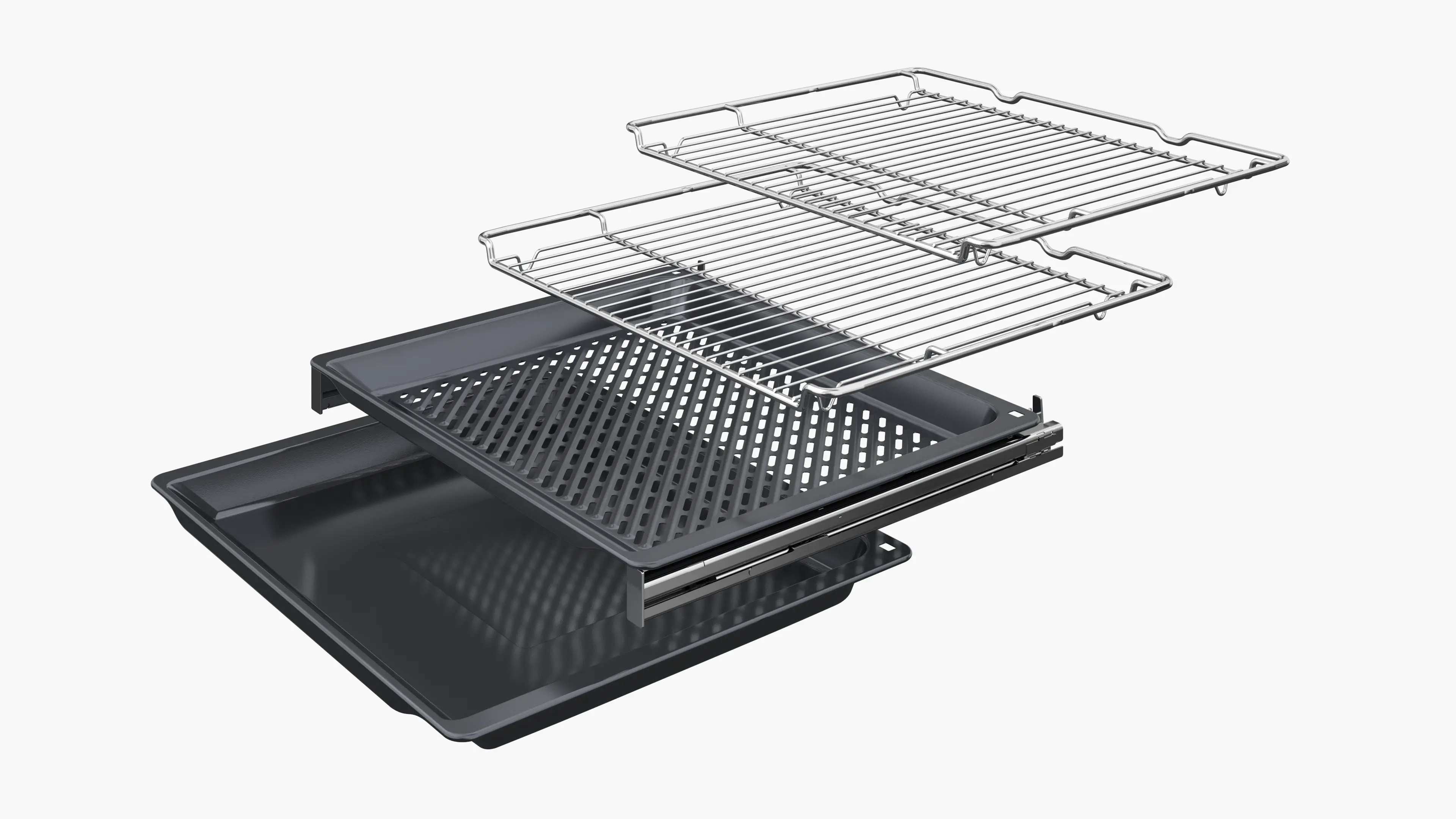

Included accessories
2 x combination grid, 1 x universal pan, 1 x air fry & grill tray
Dimensions (HxWxD)
595x596x548 mm
Dimensions of the packed product (HxWxD)
660x650x690 mm
Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Net weight
46.5 kg
Length electrical supply cord
120 cm
1 / 0
Plug type
No plug (electrical connection by licensed electrician)
Length electrical supply cord
120 cm
Voltage
220-240 V
Connection Rating
3600 W
Fuse protection
16 A
User manuals included
[EN]
Hide
Yes
Slide&Hide
Yes
Flex Design
yes (choose between anthracite grey, deep black, brushed bronze, metallic silver as an accessory)
Supporting systems
Dishes
coolStart
No
Fast preheat
Yes
Pizza setting
Yes
Crisp function
No
Air Fry function
Yes
Sensors
Multipoint meatprobe with time prediction
Hotair
4D (even heat distribution on any level )
Cooking-Assistant in Home Connect App
Yes (available with connected Home Connect account)
Voice control via voice assistant
yes (available with a registered and connected Home Connect account & using a third party, e.g. Alexa, is required)
Automatic door opening via voice control
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
