Gas hob, autarkic

T27DA69N0A


The gas cooktop with a stainless-steel surface design, slightly raised glass surface and incrementally adjustable FlameSelect

Technical Specifications

Design
  • Stainless steel
Comfort & Convenience
  • FlameSelect (9 steps)
  • Digital display
  • Sword control knobs
  • Knob ignition
  • Enamelled cast iron pan supports on non-scratch rubber feet
Size & Power
  • 5 Gas burners
  • Dual Flame Wok Burner
  • 1 High-speed, 2 Standard, 1 Economy, 1 Dual Wok Burner
  • Left rear: Standard burner up to 6.85 Mj/h
  • Right rear: High-Speed Burner up to 11 Mj/h
  • Center: Wok burner 19.5 Mj/h
  • Left front: Economy burner up to 4 Mj/h
  • Right front: Standard burner up to 6.85 Mj/h
Safety and Environment
  • Flame failure device fitted to each individual burner
  • 5-fold residual heat indicator
  • Preset of natural gas (20mbar)
Dimensions
  • Power cord length: 100 cm
Supplied Accessories
  • Liquid gas nozzles (28-30/37mbar) included
More Info
General
Energy input Gas
Type of control setting and signalling devices sword knobs
Highlights FlameSelect, Wok burner
Energy efficiency of hob 60.0 %
Design
Color of frame Stainless steel
Color of surface Stainless steel
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 5
Number of gas burners 5
Number of halogen plates 0
Installation typology Built-in
Type of pan support Elongated cast iron pan support
Total number of positions that can be used at the same time 5
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 45 x 750 x 520 mm
Net weight (kg) 12.2 kg
Cooking zone 1
Location of 1st heating element front left
Type of heating element Gas
Cooking zone 2
Location of 2nd heating element center left
Cooking zone 3
Location of 3rd heating element back left
Type of 3rd heating element Gas
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Type of 5th heating element Gas
Cooking zone 6
Location of 6th heating element center right
Location of 7th heating element front right
Type of 7th heating element Gas
Location of 8th heating element front middle / central
Location of 9th heating element front centre/cent
Type of 9th heating element Gas
Safety
Type of safety device for gas Electromagnetic for each burner
Power on indicator
Residual heat indicator Separate
Main on/off switch
Connection
Length electrical supply cord (cm) 100 cm
Electrical connection rating (W) 2 W
Energy input Gas
Frequency (Hz) 50 Hz
Gas connection rear, right
Gas connection rating (W) 12,500 W
Accessories
Included accessories 1 x cross support for espresso, 1 x WOK attachment ring

Downloads

No documents available.

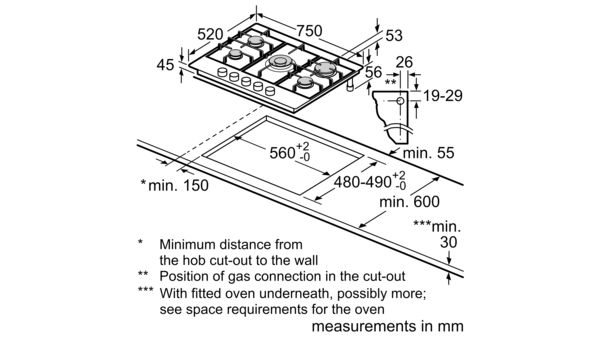

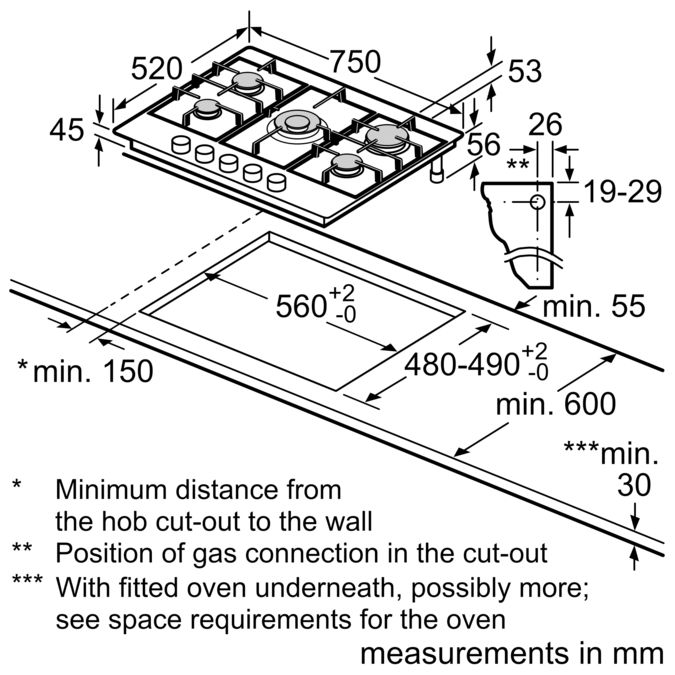

Line Drawing
