N 90 FlexInduction cooktop with TwistPad® Fire control

T68TS61N0


Standalone FlexInduction cooktop with TwistPad® Fire control.

Technical Specifications

Design
  • 80 cm width
  • Design frame
  • 4 induction zones
  • Powerboost function for each cooking zone
Flexibility
  • 2 x FlexInduction with 2 Use options: 2 Individual-Induction-Cooking Zones with 230 mm surfaces or one flexible Induction-Cooking zone with 1 x Ø 380 mmx230 mm surface
  • PowerMove
Comfort
  • Can be combined with all hobs in comfort design
  • 17 - stage power setting for each cooking zone
  • Residual heat indicator: Digital 2-step
  • Time with time programming functions
    Alarm clock
    Count up timer per cooktop
  • Automatic pan recognition sensor
    Power management function
    Automatic Safety switch-off
    Control panel lock
    Wipe protection function
  • FryingSensor with 5 temperature settings
  • Power ON indicator
  • Spill protection
Technical information

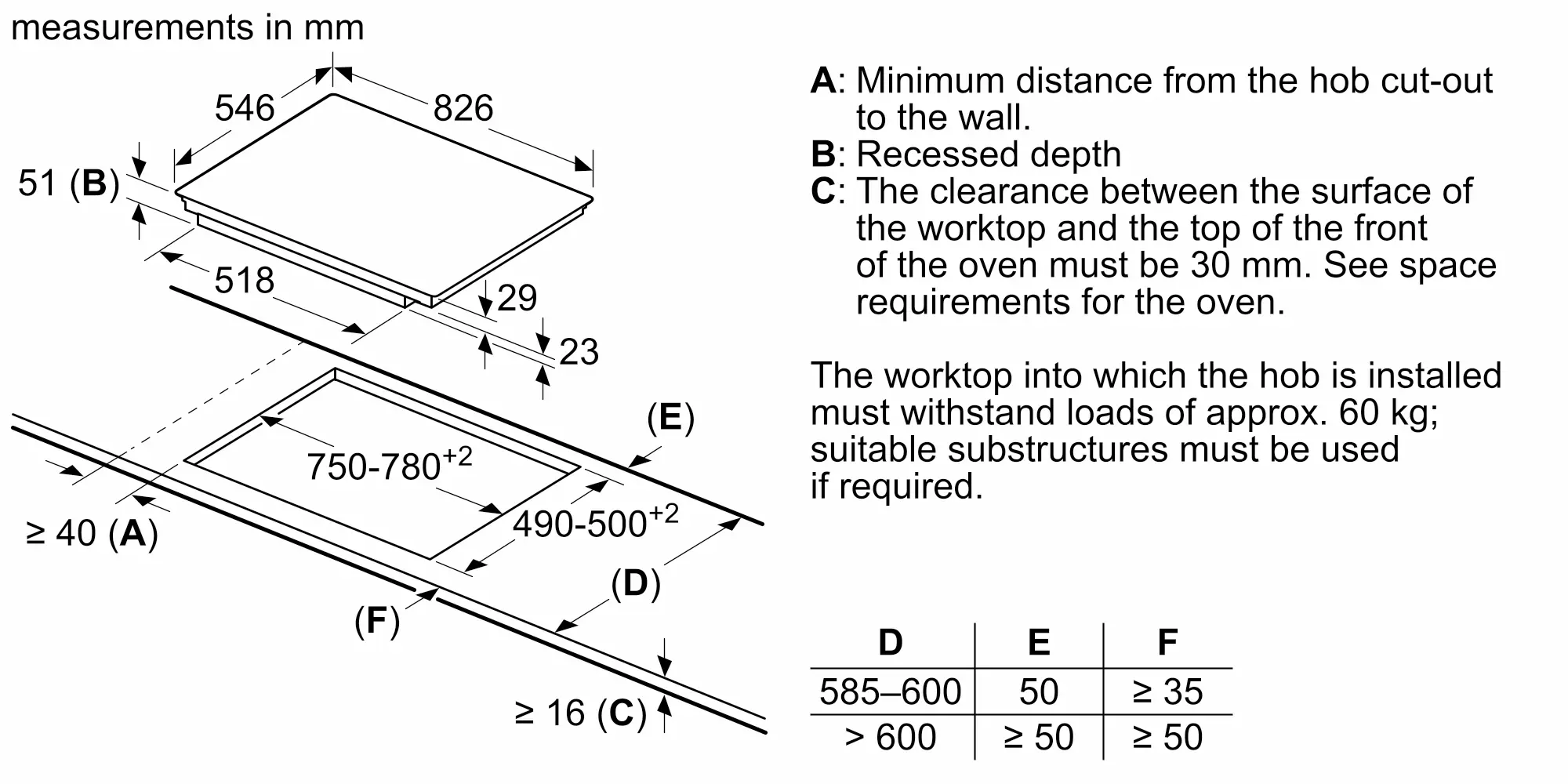

  • Installation measurements: 750 mmx490 mm
  • Min. worktop thickness: 30 mm
  • 7.4 kW total connected load
  • Length wire connection: 110 cm
  • Cooking zones: 1 x Ø 230 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 380 mmx230 mm, 3.3 KW (max. Power levels 3.7 KW) Induction or 2 x Ø 190 mm, 2.2 KW (max. Power levels 3.7 KW) Induction
More Info
General
Energy input Electric
Type of control setting and signalling devices Cylindrical controls, front, illuminated, magnetic knob, Twist pad flat
Safety device childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off
Highlights 17 power levels, 5 frying levels, Extended Flex Zone, Flexinduction, fryingSensor Plus, Keep warm function, powerBoost
Design
Color of frame Stainless steel
Color of surface Black, Stainless steel
Construction type Built-in
Design - line Convenience frame
Number of electric plates 0
Number of electric cooking zones 2
Type of frame Convenience frame
Number of gas burners 0
Number of halogen plates 0
Installation typology Built-in
Total number of positions that can be used at the same time 4
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 51 x 826 x 546 mm
Net weight (kg) 19.0 kg
Cooking zone 2
Dimension of 2nd heating element (mm) 400 x 230 mm
Location of 2nd heating element center left
Power of 2nd heating element (kW) 3.3 kW
Type of 2nd heating element Induction heating
Cooking zone 3
Location of 3rd heating element back left
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Cooking zone 6
Dimension of 6th heating element (mm) 400 x 230 mm
Location of 6th heating element center right
Power of 6th heating element (kW) 3.3 kW
Type of 6th heating element Induction heating
Safety
Power on indicator
Residual heat indicator Separate
Safety device childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off
Main on/off switch
Connection
Length electrical supply cord (cm) 110 cm
Electrical connection rating (W) 7,400 W
Energy input Electric
Frequency (Hz) 50; 60 Hz
Accessories
Included accessories 1 x adjustment strip 750 - 780 mm
