N 90 Built-in oven with added steam function Stainless steel B57VS26N0B
Built-in oven with VarioSteam and SLIDE&HIDE - fuller flavour and unrestricted access to the oven interior.
- Slide&Hide - the fully retracting oven door.
- VarioSteam - Steam assistance for CircoTherm ovens, cooks food moist on the inside and crisp on the outside.
- The duo for perfect cleaning: Pyrolysis after heavy use - the oven interior cleans itself.
- EasyClean - the environment-saving option for fast oven cleaning.
- ShiftControl - fast navigation through menus and simple operation with the generous TFT display.
Technical Specifications
Heating Functions
- Oven with 13 heating methods:
CircoTherm
CircoTherm Eco
Top/Bottom heating
Top/bottom heating Eco
Full surface grill
Small area grill
Pizza setting
Bread Baking
Bottom heating
Slow cooking
Defrost
Keep warm - Additional heating methods with steam: Reheating, Dough Proving
- Temperature range 40 °C - 275 °C
- Cavity volume: 71 net usable litres
Design
- Iilluminated ShiftControl
- Anthracite enamel cavity with 4 shelf positions
Cleaning
- Pyrolytic self cleaning
- EasyClean Cleaning program
- Full glass inner door - safer touch door
Convenience
- 4.1" TFT colour and graphics display with ShiftControl
- Temperature proposal
Actual temperature display
Optical temperature control
Automatic Programming
Sabbath setting - Additional functions:
Descaling programme
Steam cooking function (system steamer accessory required)
Drying function - Slide&Hide door, SoftOpen
- Supporting systems: Bake and Roast assist, Automatic Programs
- Number of automatic programmes: 14 PC
- Multipoint MeatProbe
- Electronic clock
- Rapid heating-up
- LED light
- Large 1 litre water tank
- Water tank empty indicator
- Location of the steam generator is outside of the cavity.
- Cooling fan
- Stainless-steel fan
- Info button
- Revolution handle
Hook-in racks / rails
- Cavity with shelf support rails, Telescopic slide-out Accessory
Accessories
- 2 x combination grid, 1 x universal pan
Safety and Environment
- Individual adjustable child lock
Residual heat indicator
Safety switch off - Quadruple glass door panel
Technical Information
- Length of mains cable: 120 cm
- Total connected load electric: 3.45 KW
- Appliance dimension (hxwxd): 595 mm x 596 mm x 548 mm
- Installation dimensions (HxWxD): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
- Please reference the built-in dimensions provided in the installation drawing
More Info
General
| Width of the product (mm) | 596 mm |
|---|---|
| Height of the product (mm) | 595 mm |
| Usable volume (of cavity) - NEW (2010/30/EC) | 71 l |
| Cooking method | Bottom heat, Bread Baking Setting, Conventional heat, Defrost, Full width grill, Half width grill, Hot Air-Eco, Hot air grilling, low temperature cooking, Pizza setting, warming |
| Highlights | activeClean, automatic programmes, Child-proof Lock, Fast Pre-heating function |
| Energy efficiency class (2010/30/EC) | A+ |
Design
| Color / Material Front | Stainless steel |
|---|---|
| Construction type | Built-in |
| Control Panel Material | Stainless steel |
| Door Material | Glass |
| Energy input | Electric |
| Installation typology | Built-in |
| Door hinge | retractable |
Size and weight
| Cavity width (cm) | 48.0 cm |
|---|---|
| Cavity height (cm) | 35.7 cm |
| Cavity depth (cm) | 41.5 cm |
| Dimensions of the product (mm) | 595 x 596 x 548 mm |
| Cut-out width | 560 mm |
| Cut-out height (mm) | 585 mm |
| Cut-out depth | 550 mm |
| Depth with door open (mm) | 635 mm |
| Net weight (kg) | 43.200 kg |
Oven
| Area of largest baking sheet | 1,290 cm² |
|---|---|
| Hot air temperature max. (°C) | 200 °C |
| T/b heating temperature max. (°C) | 275 °C |
| Product size | Large |
| Door temperature | 30 °C |
Consumption values
| Max. e cons pyrol self-clean (kWh) | 4.80 kWh |
|---|---|
| Min. e cons pyrol self-clean (kWh) | 3.30 kWh |
| Energy efficiency class (2010/30/EC) | A+ |
| Energy consumption per cycle conventional (2010/30/EC) | 0.87 kWh/cycle |
| Energy consumption per cycle forced air convection (2010/30/EC) | 0.69 kWh/cycle |
Comfort
| Pull-out system | Accessory |
|---|---|
| Are some hobs controls integrated? |
Connection
| Length electrical supply cord (cm) | 120 cm |
|---|---|
| Current (A) | 16 A |
| Plug type | no plug |
| Voltage (V) | 220-240 V |
General
| Width of the product (mm) | 596 mm |
|---|---|
| Height of the product (mm) | 595 mm |
| Usable volume (of cavity) - NEW (2010/30/EC) | 71 l |
| Cooking method | Bottom heat, Bread Baking Setting, Conventional heat, Defrost, Full width grill, Half width grill, Hot Air-Eco, Hot air grilling, low temperature cooking, Pizza setting, warming |
| Highlights | activeClean, automatic programmes, Child-proof Lock, Fast Pre-heating function |
| Energy efficiency class (2010/30/EC) | A+ |
Accessories

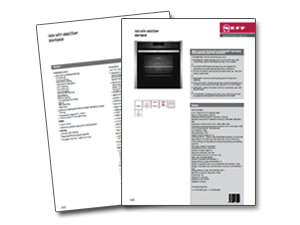

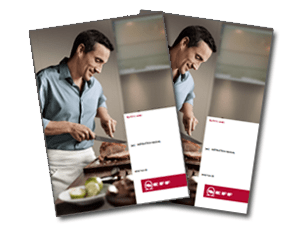

Downloads
Line Drawing
