Technical Overview
Installation type
Wall-mounted
Type of appliance width
90 cm
Cooktop to hood control
Yes
Noise level
51 dB(A) re 1 pW
Climate control sensor
Yes
Operating Mode
Convertible
Maximum output air extraction
441 m³/h
Boost position air extraction
1007 m³/h
Key Features
Commitment To Excellence
Specifications
Type of appliance width
90 cm
Color body
Black
Installation type
Wall-mounted
Operating Mode
Convertible
Total power of the motors
230 W
Type of control setting and signalling devices
touch control, Via app
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
441 m³/h
Boost position air extraction
1007 m³/h
Sound power at max. speed (2010/30/EC)
51 dB
Sound power boost (2010/30/EC)
70 dB
Maximum output recirculating air
437 m³/h
Boost position output recirculating
944 m³/h
Noise level using maximum speed (recirculation)
60 dB
Noise level using power boost (recirculation)
80 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A+
Total annual energy consumption
39.1 kWh/annum
User manuals included
[DE]
Voltage
220-240 V
Height of the appliance
450 mm
Width of the appliance
890 mm
Depth of the product
447 mm
Dimensions of the packed product (HxWxD)
770x730x1230 mm
Height of the chimney
420-663/457-750 mm

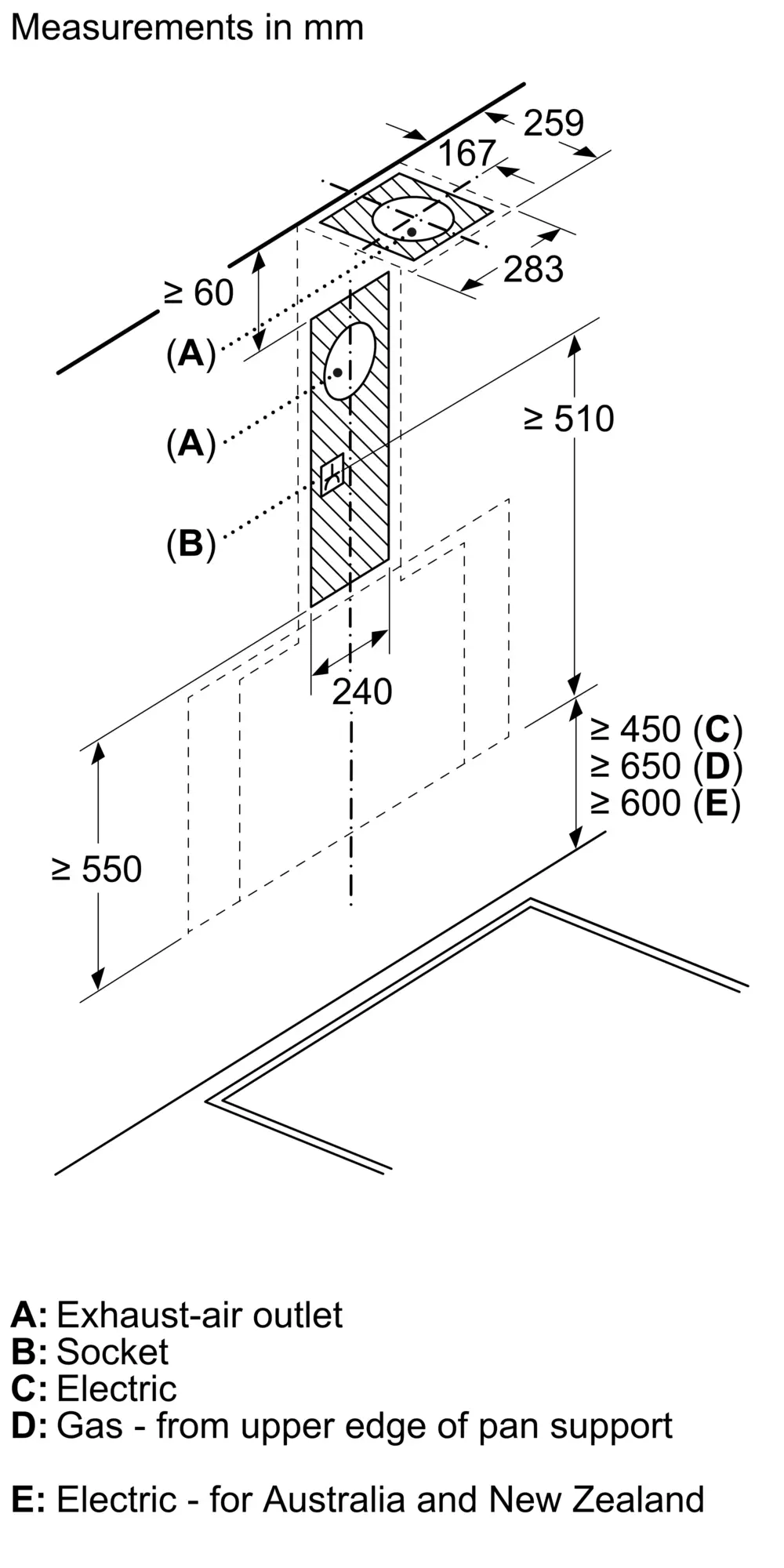

Minimum distance above an electric hob (EU)
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
22.9 kg
Handle
Not applicable

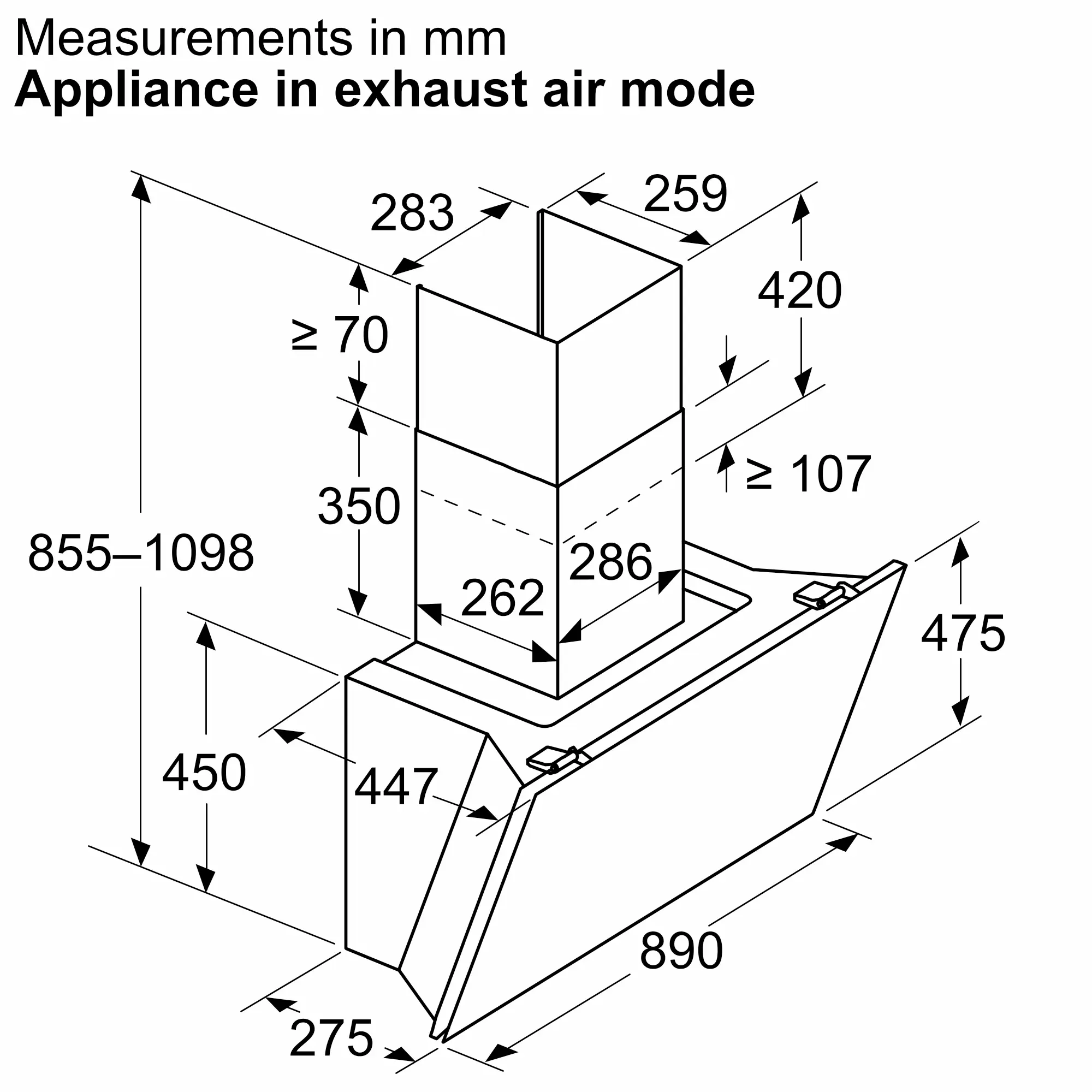

Appliance height exhaust air max
1098 mm
Appliance height exhaust air min
855 mm

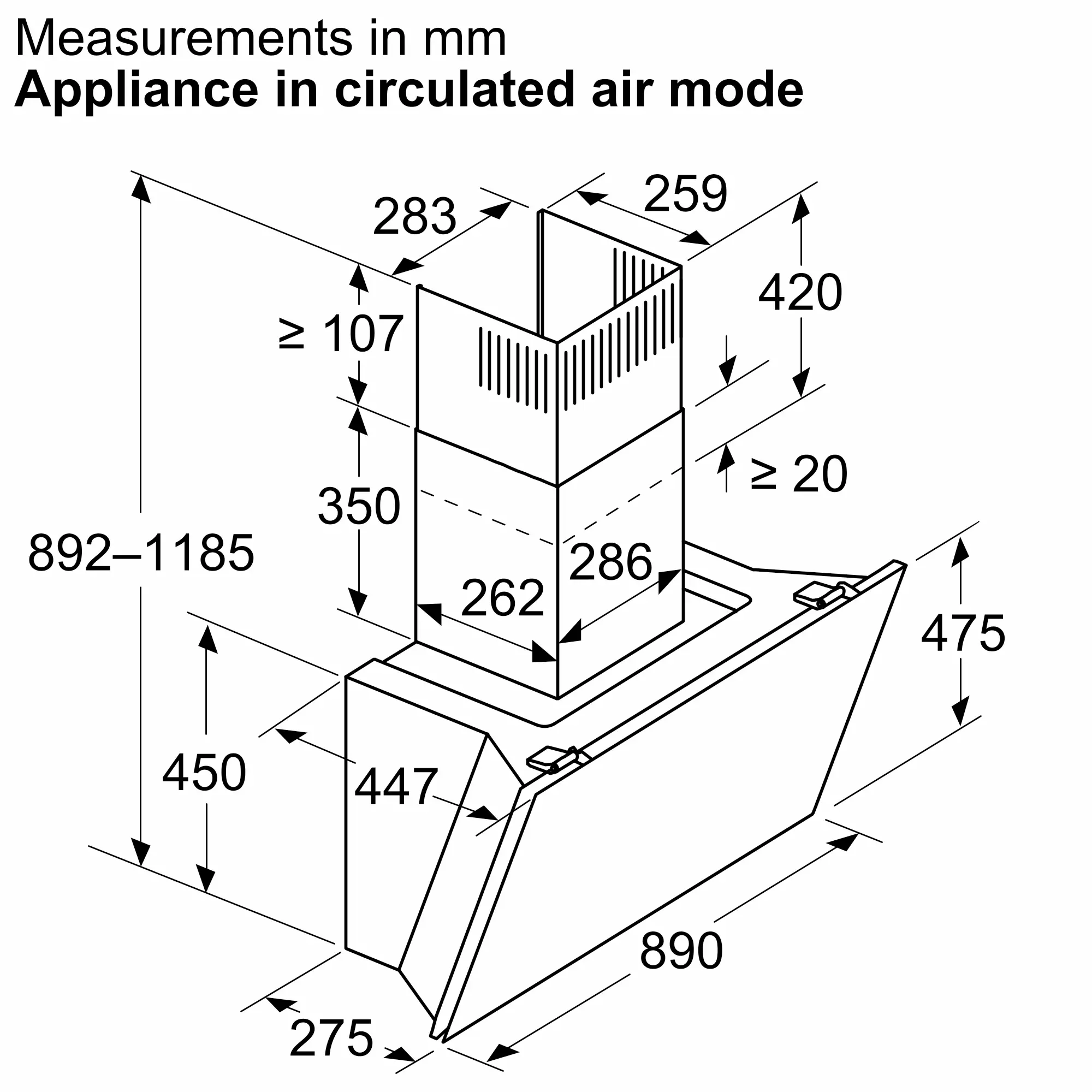

Appliance height recirculating max
1185 mm
Appliance height recirculating min
892 mm
1 / 0
Climate control sensor
Yes
SilentPowerDrive
Yes
Extremely quiet appliances
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
422 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Light colour tunable by Home Connect
Yes
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
Cooktop to hood control
Yes
Smart Hood Automatic
No
